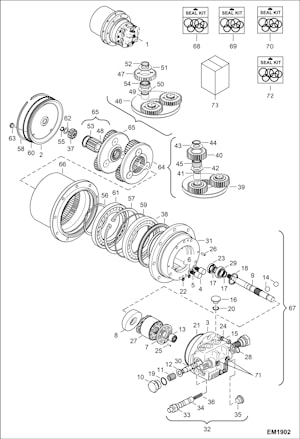

детали бортового редуктора Bobcat E16 / 321 / 323 / 324 #6688447
Запчасти для бортового редуктора и гидромотора хода мини экскаваторов Bobcat
применяемость: Bobcat E16, 321, 323, 324
| НОМЕР | #ДЕТАЛИ | НАИМЕНОВАНИЕ | КОЛ-ВО | | 1 | 6688447 | MOTOR DRIVE / БОРТОВОЙ РЕДУКТОР В СБОРЕ | 1 | | Ref. 2-67 | | 2 | 6688096 | COVER / КРЫШКА | 1 | | 3 | 6688098 | HUB | 1 | | 4 | 7329757 | PISTON MOTOR TRAVEL / БЛОК ПОРШНЕЙ | 2 | | Was 6688099 | | 5 | 6688100 | SPRING | 2 | | 6 | 6688101 | WASHER | 2 | | 7 | | VALVE, PLATE | 1 | | VALVE, PLATE,NLA - Was 6671905 | | 8 | 6693117 | SWASHPLATE | 1 | | NLA - Order Ref. 73 | | 9 | 6688103 | SHAFT / ЦЕНТРАЛЬНАЯ ВАЛ ШЕСТЕРНЯ БОРТОВОГО РЕДУКТОРА И ГИДРОМОТОРА | 1 | | 10 | | PLUG | 2 | | PLUG,NLA - Order 7308583 plug kit - Was 6667783 | | 11 | 6667784 | SPRING | 2 | | Was 6688105 | | 12 | | WASHER | 2 | | WASHER,NLA - Order Ref. 70 (7310948 kit) - Was 6667785 | | 13 | 6667781 | BEARING | 1 | | 14 | 6688107 | BALL | 2 | | 15 | 6688108 | BOLT | 6 | | 16 | 6693118 | PLASTIC PLUG 9/16 IN UNF | 4 | | 17 | 6667756 | SNAP RING | 2 | | 18 | 6688109 | RING | 1 | | 19 | | O-RING | 2 | | O-RING,NLA - Order 7308583 plug kit - Was 6667777 | | 20 | 6692863 | ORING | 4 | | 21 | 6667779 | O-RING | 1 | | 22 | | O-RING | 2 | | O-RING,NSS - Order Ref. 68 - Was 6688110 | | 23 | 6667774 | SEAL | 1 | | 24 | 6667788 | WASHER | 6 | | 25 | 6667782 | DOWEL PIN | 1 | | 26 | 6688111 | PIN | 2 | | 27 | 6667778 | PISTON, MOTOR TRAVEL / БЛОК ПОРШНЕЙ | 1 | | Was 6688112 | | 28 | 6693053 | SHOCKPROOF VALVE | 2 | | 29 | 6688114 | BEARING | 1 | | 30 | 6688115 | VALVE | 1 | | 31 | | HUB INNER | 1 | | HUB INNER,NSS - Order Ref. 1 | | 32 | 6688117 | VALVE | 1 | | Ref. 33-36 | | 33 | 7000964 | PLUG | 1 | | W/ O-ring | | 34 | 6670704 | SPOOL | 1 | | 35 | 7000966 | FITTING | 1 | | W/ O-ring | | 36 | | SPRING | 1 | | SPRING,NLA - Order 7359258 spring kit - Was 6686078 | | 37 | 7020379 | GEAR SUN | 1 | | Was 6667752 | | 38 | 6667754 | HOUSING BEARING / ПОДШИПНИК С ПЛАВАЮЩИМ УПЛОТНЕНИЕМ | 1 | | W/front seal | | 39 | | NLA - Order Ref. 64 - Was 6693061 | 1 | | 40 | | GEAR | 3 | | GEAR, NLA - Order Ref. 64 - Was 6667755 | | 41 | 6693116 | PIN | 3 | | 42 | 6667757 | WASHER | 3 | | 43 | 6667758 | WASHER | 3 | | 44 | 6667759 | SNAP RING | 3 | | 45 | 6667760 | ROLLER BEARING | 57 | | 46 | 6693059 | PLANETARY CARRIER | 1 | | 47 | 6693062 | PLANET GEAR | 3 | | 48 | 6667753 | GEAR / ЦЕНТРАЛЬНАЯ ШЕСТЕРНЯ | 1 | | 49 | 6693115 | PIN | 3 | | 50 | 6667757 | WASHER | 3 | | 51 | 6667758 | WASHER | 3 | | 52 | 6667759 | SNAP RING | 3 | | 53 | 6667764 | RING SNAP | 1 | | 54 | 6667763 | ROLLER BEARING | 57 | | 55 | 6688118 | RING | 1 | | 56 | 6667765 | RING SNAP | 1 | | 57 | | SNAP RING | 1 | | SNAP RING,NLA - Order Ref. 1 - Was 6667766 | | 58 | 6667767 | RING SNAP | 1 | | 59 | 6658401 | O-RING | 1 | | Was 6667768 | | 60 | 6667768 | O-RING | 1 | | Was 6658401 | | 61 | 6667770 | BEARING / ПОДШИПНИК | 1 | | 62 | 6688119 | KIT SHIM | 2 | | 63 | 6676161 | PLUG | 2 | | W/ O-ring | | 64 | 6667792 | GEAR ASSEMBLY / ПЛАНЕТАРНАЯ ПЕРЕДАЧА | 1 | | Ref. 39-45 | | 65 | 6693119 | PLANETARY GEAR SET 6.75 / ПЛАНЕТАРНАЯ ПЕРЕДАЧА | 1 | | Ref. 46-54 | | 66 | 6667748 | HOUSING | 1 | | 67 | 6693058 | HYDRAULIK MOTOR MORV 14,72/8,70 | 1 | | Ref. 3-31 | | 68 | 6688120 | KIT O-RING | 1 | | basic - Ref. 19-23 & 59-60 | | 69 | 6688121 | KIT | 1 | | major rebuild - Ref. 19-23, 38 & 59-60 | | 70 | 7310948 | KIT PLUG | 1 | | 71 | | PLUG | 2 | | PLUG,NSS - Order 7308583 plug kit | | 72 | 7308583 | KIT UNIVERSAL PLUG | 1 | | 73 | 7403232 | KIT SWASHPLATE | 1 |
Производитель
Bobcat,
Bonfiglioli,
Kayaba,
Nachi
Если Вас интересует детали бортового редуктора Bobcat E16 / 321 / 323 / 324 #6688447 , Вы можете:
